F170 Digital Otoscope Driver
Driver for Cainda Digital Otoscope F170
Quick AccessAndroid & IOS Phones
Windows
Mac
Use on Android & IOS Phones
Cainda F170 digital otoscope can be used on IOS/Android Smart Devices via the wifi connect.

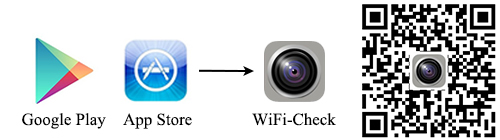

Step1: Download the app
You can download the "WiFi Check" app on App store or Google Play.
App store Download Link: "WiFi Check"
Google Play Download Link: "WiFi Check"

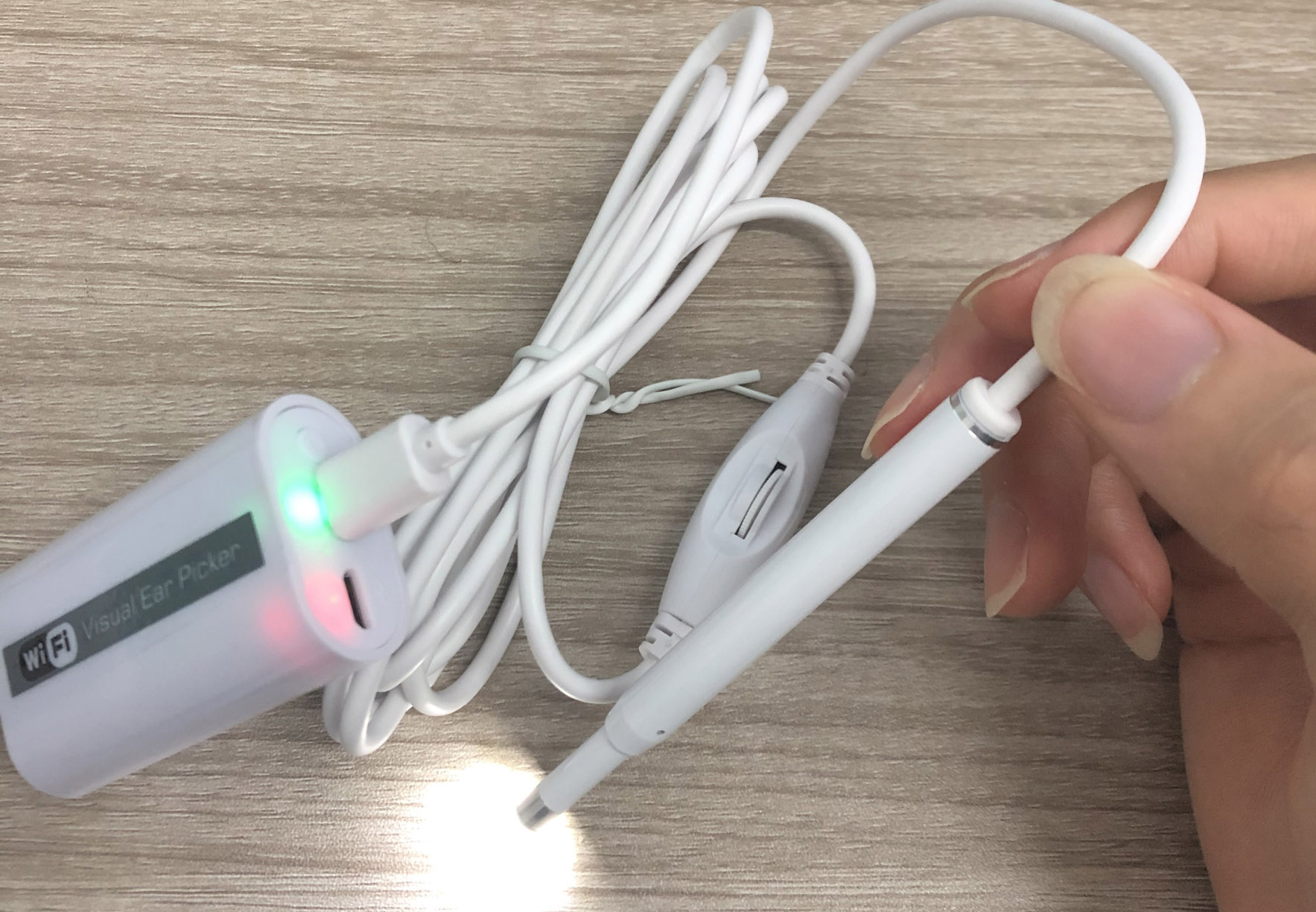

Connect the otoscope to the wifi box(note that selecting the correct port). Long press the power button for 3 seconds to turn on the wifi box.(You can see the green and red indicator light and the LED light on.)

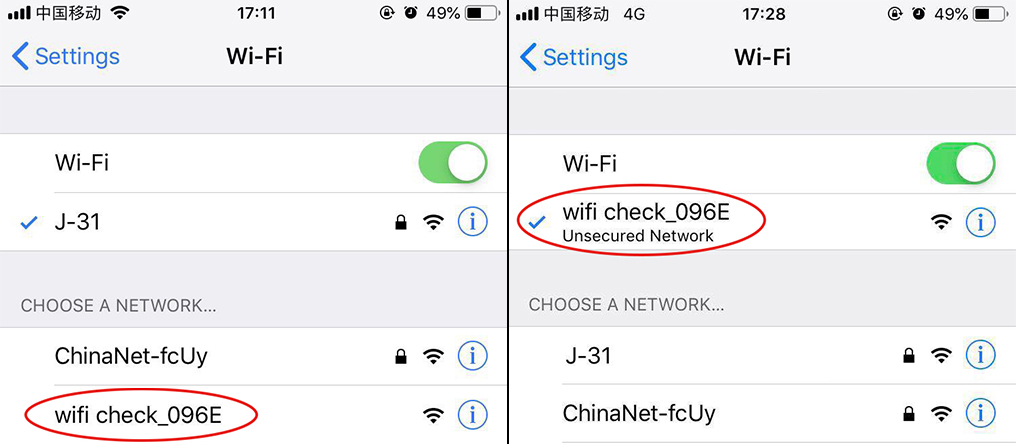

Access to the WiFi settings of your phone, find the wifi named "wifi check_xxxx". Click it to connect.
(It may remind “unsecured network” or “unavailable to access internet” which is normal. Please don't worry for it.)
After connecting successfully, open the ”WiFi Check” app and you can see the image. Now you can use it to check your ear.
Note: If you have any trouble while using our digital otoscope, please email us for assistance: cainda-seller@outlook.com
Use on Windows
1) Win10 Built-in Software
If you are a Win10 user, you can open its built-in camera app to use this otoscope directly.
You can click the "Windows" logo on the left to find the "Camera" app in Start menu.
Connect the microscope to your computer via the USB cable and then you can see the image.
2) "xploview" Software
Windows 7 8 10 user can choose to use the "xploview" camera app.
Step 1: Download the "xploview"
Please download the "xploview.exe" via the link below to install:
xploview.exe(3.87MB) | Windows XP, Vista, 7, 8, 10 | 32/64 bit
Step 2: Install the "xploview"
Doube click the "xploview.exe" and follow the steps below:
Step 3: Use your otoscope
Plug the USB cable into your computer.

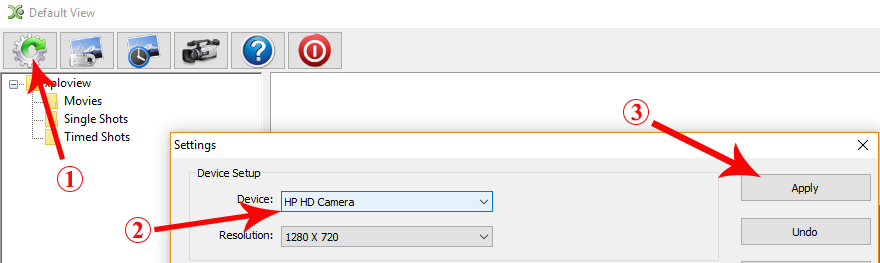

Run the "xploview" app and click “Settings” – “Device” to select “HP HD Camera” on the dropdown list, finally click "Apply".
Plug the USB cable into your computer.
Run the "xploview" app and click “Settings” – “Device” to select “HP HD Camera” on the dropdown list, finally click "Apply".
3) Amcap
Step 1: Download the “Amcap” and extract
Please download the “Amcap” software package via this link:
Amcap.zip(3.38MB) | Windows XP, Vista, 7, 8, 10 | 32/64 bit
After finishing download, right-click the "Amap.zip" and select “Extract All...” to extract it out.
Step 2: Install the “Amcap"
Open the "Amcap" folder and double click the “setup.exe” to install the "Amcap" app.
Open the "Amcap" folder and double click the “setup.exe” to install the "Amcap" app.
When you install the "Amcap" software successfully, it would remind you to restart your computer in the last step.
Please select "No, I will restart my computer later", or your computer will shut down and restart immediately.
Please select "No, I will restart my computer later", or your computer will shut down and restart immediately.
Step 3: Use your microsocpe
Plug the microscope into the computer and remove the microscope lens cover.
Right click the Amcap and select "Run as administrator" to open the Amcap software.

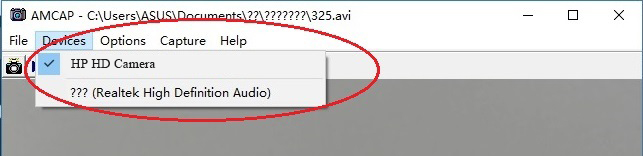

Click "Devices" on the top menu and select the "HP HD Camera" on the dropdown list.
Plug the microscope into the computer and remove the microscope lens cover.
Right click the Amcap and select "Run as administrator" to open the Amcap software.
Click "Devices" on the top menu and select the "HP HD Camera" on the dropdown list.
Step 4: Set up the location to save pictures/videos
You need to set up the snapshot location for pictures on Amcap when you first use it.
Pictures: Select “Capture” – Snapshot Location – Find or new a folder and click “Open”.
Videos: Click “File” – “Set Capture File”. Find and select an avi format video file. Click “Open”.
Note: If you need any help, please contact us via cainda-seller@outlook.com
Use on Mac

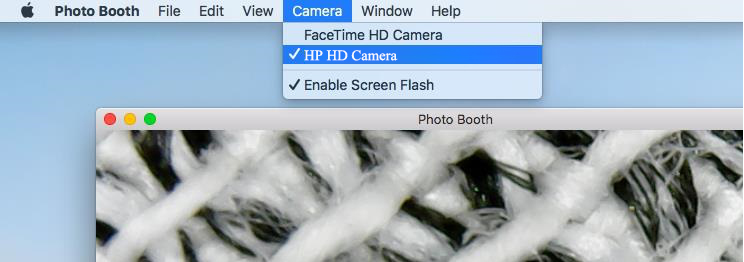

1) "Photo Booth" app
Mac user can open the “Photo Booth” app to use this microscope.
Plug the microscope to your Mac. Click to open the "Photo Booth" software.
Click "Camera" on the top menu and select the "HP HD Camera" on the dropdown list.
You need to set up the snapshot location for pictures on Amcap when you first use it.
Pictures: Select “Capture” – Snapshot Location – Find or new a folder and click “Open”.
Videos: Click “File” – “Set Capture File”. Find and select an avi format video file. Click “Open”.
Note: If you need any help, please contact us via cainda-seller@outlook.com
Use on Mac
1) "Photo Booth" app
Mac user can open the “Photo Booth” app to use this microscope.
Plug the microscope to your Mac. Click to open the "Photo Booth" software.
Click "Camera" on the top menu and select the "HP HD Camera" on the dropdown list.
2) "Digital Viewer" Software
"Digital Viewer" App is compatible with a general-purpose Mac microscope.
Please check your Mac version and choose the right one to install on your Mac:
Digital_Viewer_3.3.30.pkg(8.66MB) | macOS (10.13.4 and later) | 64 bit
Digital_Viewer_3.1.08.dmg(2.67MB) | Older macOS / OS X versions (10.5 and later) | 32 bit

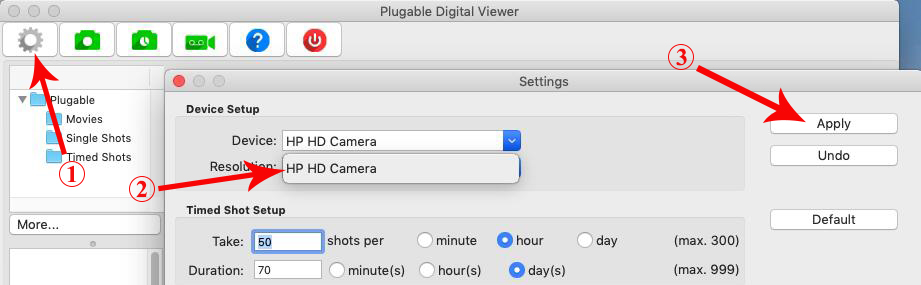

Plug the microscope into the Mac computer and run the "Digital Viewer" app.
Click “Settings” – “Device” to select “HP HD Camera” on the dropdown list.
Then click "Apply" to make the microscope work.
P.S.
If you need more attachments for this otoscope, please email us via cainda-seller@outlook.com. We could ship you for free.
If you need more attachments for this otoscope, please email us via cainda-seller@outlook.com. We could ship you for free.
